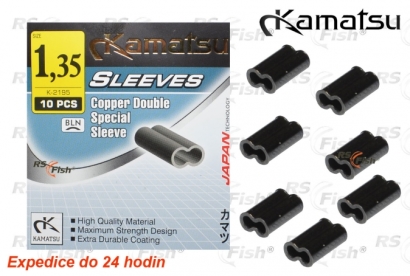

Metal sleeve for steel leaders - double

The metal tube for the production of wire leaders. Cable driven through tube back and forth to the tube formed loop (you can insert into the swivel, carbine, treble hook, hook, etc.). Then press the tube with pliers (good fishing are special pliers). If the cable is wrapped in nylon is pressed the tube should be heated slightly lighter.

The dimensions of the individual diameters according to the picture :

- diameter 0.80 mm - dimension A = 0.80 mm, dimension T = 0.25 mm, dimension L = 5.00 mm

- diameter 1.00 mm - dimension A = 1.00 mm, dimension T = 0.30 mm, dimension L = 5.00 mm

- diameter 1.20 mm - dimension A = 1.20 mm, dimension T = 0.45 mm, dimension L = 7.00 mm

- diameter 1.35 mm - dimension A = 1.35 mm, dimension T = 0.35 mm, dimension L = 6.35 mm
